Erase tool

The Erase tool lets you delete clips, partial clips, MIDI notes, automation envelope nodes, and transient markers.

To select the Erase tool

Do one of the following:

Click the Erase tool button in the Control Bar.

Press T to display the Tools HUD, then select the Erase tool.

Press F10.

Note: The F10 shortcut key cycles through all Erase tools (Erase/Mute). If another Erase tool is selected, press F10 again until the Erase tool is selected.

Using the Erase tool on audio clips

Figure 793. Erase tool hotspots on audio clip.



Table 161. Using the Erase tool on audio clips

Hotspot	Default action	+ALT
A	Drag to delete a time selection
B	Click clip to delete clip
B	Click a selection to delete the selection
C	Lasso to delete clips	Delete by time

Using the Erase tool on MIDI clips

Figure 794. Erase tool hotspots on MIDI clip.



Table 162. Using the Erase tool on MIDI clips

Hotspot	Default action	+ALT
A	Drag to delete a time selection
B	Click clip to delete clip
B	Click a selection to delete the selection
C	Lasso to delete clips	Delete by time

Using the Erase tool on PRV notes

Figure 795. Erase tool hotspots on PRV notes.



Table 163. Using the Erase tool on PRV notes

Hotspot	Default action
A	Click to delete note
A	Drag to delete multiple notes
B	Lasso delete notes

Using the Erase tool on automation

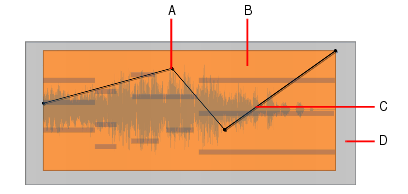

Figure 796. Erase tool hotspots on automation.



Table 164. Using the Erase tool on automation

Hotspot	Default action
A	Delete node
B	Drag to lasso delete nodes across tracks
C	Delete envelope segment
D	Lasso delete nodes across tracks

Using the Erase tool on AudioSnap transients

Figure 797. Erase tool hotspots on AudioSnap transients.



Table 165. Using the Erase tool on AudioSnap transients

Hotspot	Default action
A	Delete clicked transient marker
B	Drag to delete multiple transient markers
C	Lasso delete transient markers across clips and tracks

Note: You can only erase user created transient markers.
