Modules

Channel strip controls are grouped into various modules that can be shown/hidden. The following modules are available:

Input Gain module

ProChannel module

FX Rack module

Sends / Bank / Patch module

MSR module

Pan Control module

Volume module

Icon module

In / Out module

To show/hide a module

Click the Modules menu in the Console view and choose the desired module.

Figure 1185. Console view Modules menu.

Input Gain module

The Input Gain module lets you adjust the pre-volume input gain and pan (buses only).

Figure 1186. Input Gain module.

A. Input gain/trim B. Input pan

For information about using input gain, see Adjusting volume trim.

ProChannel module

The ProChannel module lets you apply compression, equalization, and tube saturation modeling to each audio track, Instrument track and bus.

Figure 1187. ProChannel module.

A. Pre/Post B. Global input meter C. Expand/collapse ProChannel D. Preset E. Global On/Off F. Equalizer graph

For information about ProChannel, see ProChannel.

FX Rack module

The FX Rack module lets you insert real-time plug-in effects in tracks and buses.

Figure 1188. FX Rack module.

A. Bypass FX Rack B. Insert plug-in C. Enable/disable plug-in D. Effect output interleave indicator (mono, stereo or surround)  E. Plug-in name

For information about using real-time effects, see Using real-time effects.

Sends / Bank / Patch module

The Sends / Bank / Patch module provides different controls for audio tracks, buses and MIDI tracks.

For audio tracks, you can create effects sends, submixes, headphone mixes, etc.

For MIDI tracks you can choose the bank, patch and channel, which determine the instrument sound that will be used for playback.

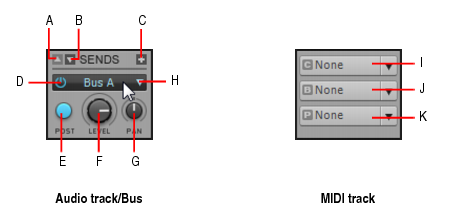

Figure 1189. Sends / Bank / Patch module.

A. Scroll up B. Scroll down C. Insert Send D. Send enable/disable E. Pre/post toggle F. Send level G. Send pan H. Send destination I. Channel J. Bank K. Patch

For information about using sends and MIDI Bank, Patch and Channel settings, see Routing and mixing digital audio and Choosing the instrument sound (bank and patch).

MSR module

The MSR module lets you set various track states, including mute, solo and arm for recording.

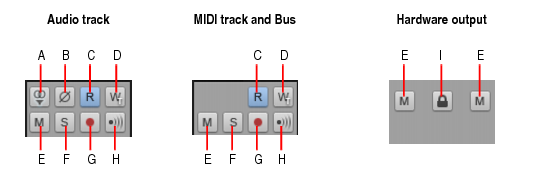

Figure 1190. MSR module.

A. Mono/Stereo B. Phase Invert C. Read Automation D. Write Automation E. Mute F. Solo G. Arm for recording H. Input Echo I. Link left and right channel faders (hardware outputs only)

For information about track states, see Track-by-track playback.

Pan Control module

The Pan module lets you adjust the channel strip’s pan setting.

Figure 1191. Pan Control module.

A. Stereo Pan control B. Surround Panner

For information about panning, see Adjusting volume and pan and Panning in surround.

Volume module

The Volume module lets you adjust the channel strip’s playback or monitoring level. The meter lets you monitor the channel strip’s playback or recording level. The peak meter value updates during playback to show the highest peak level reached.

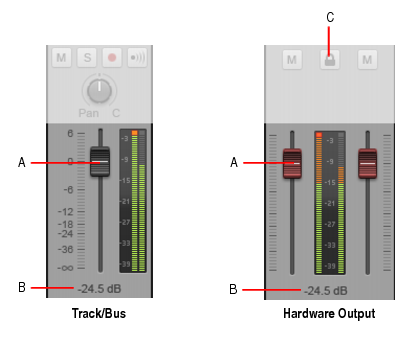

Figure 1192. Volume module (also showing MSR and Pan Control modules).

A. Volume fader B. Peak value C. Link channels (hardware outputs only)

For easy identification, track fader thumbs are black, bus fader thumbs are blue, and hardware output fader thumbs are red.

Note: Hardware out faders can be linked using the Link button . This allows you to adjust both the left and right channel at the same time.

For information about setting levels, see Adjusting volume and pan.

For information about using meters, see Metering.

Icon module

The Icons module lets you assign a graphic icon to the channel strip. This makes it easy to identify tracks and buses visually.

Figure 1193. Icon module.

A. Track/bus icon

For information about using track icons, see Track icons.

In / Out module

The In / Out module lets you assign an input and output to the channel strip. The Input device is used for recording and the Output device is used for playback.

Figure 1194. In / Out module.

A. Input B. Output

For information about assigning inputs and outputs, see Assigning Inputs & Outputs.
